Barrel Vaults

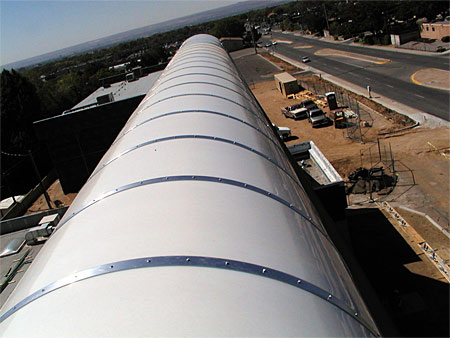

Specifications: Barrel Vault skylights as manufactured by Advanced Skylight Services Inc. are available in half round or quarter round configurations. These units shall consist of base frame members and mullions of 6063 T-5 extruded aluminum alloy, with condensation gutters to ensure adequate drainage to the exterior. These units are available in single-lens or double-lens configurations. Double lens units consist of two 1/8” high impact cast acrylic panels one mounted over the other separated by a 1/2” thermal spacer between acrylic panels. Glazing is available in Clear, #2447 White, # 2412 Bronze, or # 6047 Grey acrylic panels. All retainer caps shall consist of 6063 T-5 extruded aluminum alloy. All fasteners shall be corrosion resistant # 10 tech screws with neoprene gasket washers. Barrel Vault units are available in widths from 2’ to 8’ and unlimited lengths. These units are available in curb mount or self flashing configurations. Curb mounted units are available with open or closed ends. All units are available with powder coated frames and retainers in a wide variety of colors and textures.
